Foot and Ankle Instrument Set

Description

The Foot and Ankle Instrument Set includes all of the specialized instruments required for the use of Tigon's Manticore line of bone anchors for foot and ankle. The set is to be used for Achilles and Brostrum repairs. All of the surgeries performed with the set use the reusable Quick Connect Handles, which allows for attachment of many of the instruments to the same handle. This feature reduces waste and the weight of the tray, all while saving space in the hospital. The instruments in this set have gone through many design iterations to maximize their functionality, durability, and ease of use.


For the following implants

TIG55-TIGLASSO/-X

TIG65-TIGLASSO

TIG48-TIGLASSO

TIG60-TIGLASSO

TIG29-TIGLASSO

TIG29-X

TIG29KL-TIGLASSO

LIG29-X

LIG29KL-TIGLASSO

Products Included

  • 1     Foot & Ankle Instrument Tray
  • 2     Quick Connect Handles
  • 2     Outer 4.8mm Anchor Inserters
  • 1     Drill Guide
  • 1     5.5mm Tap
  • 2     2.9mm Anchor Inserters
  • 2     Inner 4.8mm Anchor Inserters
  • 1     2.6mm Drill
  • 1     3.8mm Drill
  • 2     Blunt Anchor Inserters

IFU

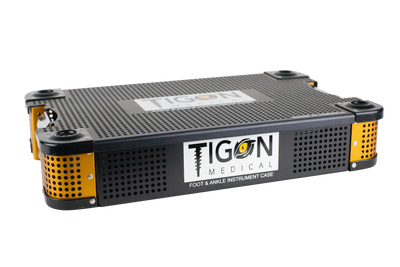

Foot & Ankle Instrument Tray

Description

 The Tigon Medical Foot & Ankle Instrument Case is a compact, single layer tray that contains all the reusable instruments needed to complete both Achilles and Brostrum repairs. The case features brackets to securely hold the instruments, as well as a compartment to store miscellaneous items and instruments that may be required during a surgery.

Part Number(s) - LIGO-01

Use/ Primary Surgery

  • Brostrum repair
  • Achilles repair

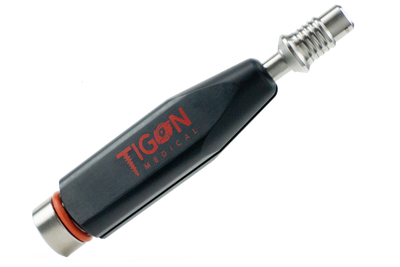

Quick Connect Handle

Description

 A reusable handle that allows for the use of many different instruments with the same durable, and ergonomic handle. Two Quick Connect Handles come in each set so you always have a handle ready. The rubber O-ring allows surgeons to easily secure the suture to the handle when inserting an anchor. Channels in each side of the handle provide a passage way for suture, keeping it out of the way and preventing any unnecessary wear or damage.

Part Number(s) - TIGO-02

Use/ Primary Surgery

  • Brostrum Repair
  • Achilles Repair

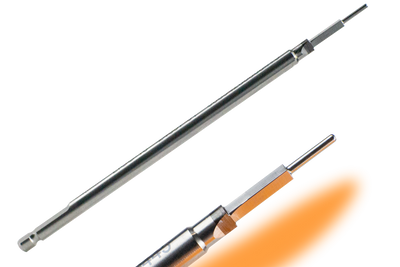

Outer 4.8mm Anchor Inserter

Description

Taking inspiration from the design of the Quick Connect Handle, the Lateral Knotless Handle has all of the same design features, and allows for the insertion of the threaded blocker inserter. The handle features black laser lines to aid in the insertion of the distal anchor to the appropriate depth.

Part Number(s) - LIGO-06

Use/ Primary Surgery

  • Achilles Repair

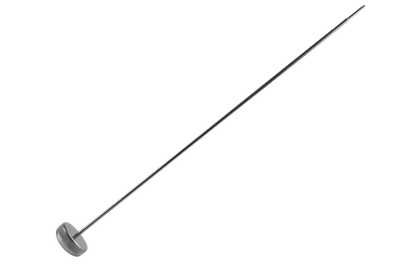

4.8mm Inner Anchor Inserter

Description

The Inner Anchor Inserter is designed to work in conjunction with the Outer Anchor Inserter, to allow for secure insertion of the Distal Anchor. The black laser lines are highly visible on the scope and the knurling on the back of the instrument allows for easy threading and unthreading of the anchor.

Part Number(s) - LIGO-07

Use/ Primary Surgery

  • Achilles Repair

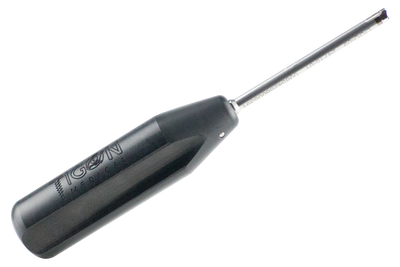

Drill Guide

Description

The Drill Guide holds positioning when drilling and inserting 2.9 mm anchors. It has a similar feel to the Quick Connect Handle, but has a smaller diameter with reduced weight and size. The large cannulation gives the surgeon the ability to drill a pilot hole and insert the 2.9mm Anchor without losing the location. The Cannula also features a black laser line that lines up with the Labral Anchor Inserter black laser line allowing for insertion to the appropriate depth.

Part Number(s) - LIGO-09

Use/ Primary Surgery

  • Brostrum Repair

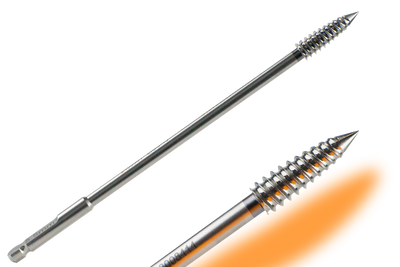

5.5mm Tap

Description

The medial tap is used to pre-tap a hole for the TIG55 medial anchor. When used, the tap reduces the torque placed on the anchor during insertion, especially in harder bone. Like the TIG55 suture anchor, the tap features a double start thread which halves the amount of turns needed to tap the hole.

Part Number(s) - LIGO-13

Use/ Primary Surgery

  • Achilles Repair

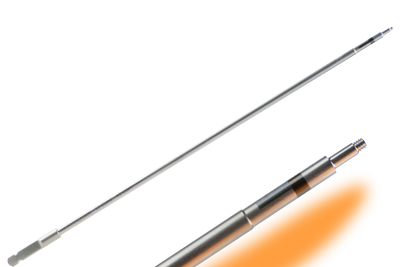

Blunt Screw-In Anchor Inserter

Description

The Blunt Screw-In Anchor Inserter is excellent due to the fact that the tip allows for easier location of the awl hole without the potential to snag on soft tissue. Like most instruments included in the set, the inserter features black laser lines and the quick connect attachment function.

Part Number(s) - LIGO-16

Use/ Primary Surgery

  • Achilles Repair

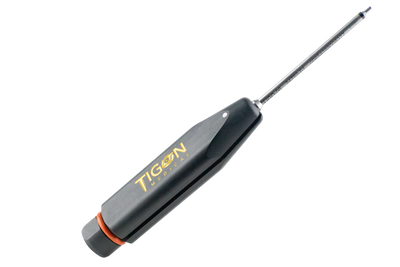

2.9mm Anchor Inserter

Description

The 2.9mm Anchor Inserter allows for a secure connection to the anchors that can be disengaged after insertion by a few counterclockwise turns of the handle. The handle also features laser lines to indicate insertion depth to get the appropriate amount of countersink.

Part Number(s) - LIGO-04

Use/ Primary Surgery

  • Brostom Repair

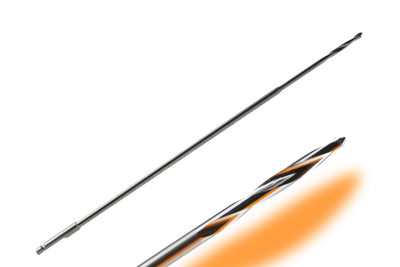

2.6mm Drill

Description

The 2.6mm Drill is the go-to drill for repairs using the Manticore 2.9mm Anchor. It is designed to function with the Drill Guide. The larger diameter section on the back end creates a hard stop to ensure proper drill depth.

Part Number(s) - LIGO-15

Use/ Primary Surgery

  • 2.6mm Repair

3.8mm Drill

Description

The go-to tool for creating pilot holes for Achilles Repair. It creates the perfect pilot hole in both diameter and depth for both the proximal and distal anchors when used in conjunction with the drill guide.

Part Number(s) - LIGO-17

Use/ Primary Surgery

  •  Achilles Repair

Place an order

Contact us and include the products you would like to order.
